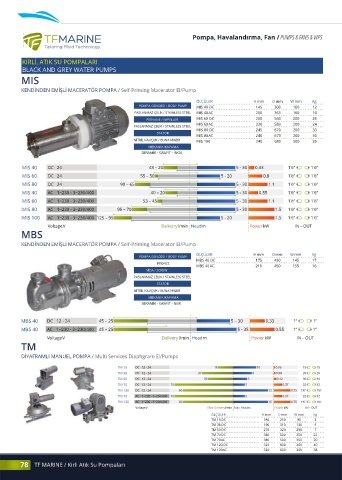

Page 76 - deniz-marin2

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

KİRLİ, ATIK SU POMPALARI
BLACK AND GREY WATER PUMPS
MIS

KENDİNDEN EMİŞLİ MACERATÖR POMPA / Self-Priming Macerator El/Pump

ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP MIS 40 DC 145 300 160 12
PASLANMAZ ÇELİK / STAINLESS STEEL MIS 40 AC 200 355 160 10
PERVANE / IMPELLER MIS 60 DC 200 560 200 26
MIS 60 AC 230 580 200 24
PASLANMAZ ÇELİK / STAINLESS STEEL
MIS 80 DC 245 670 200 33
STATOR
MIS 80 AC 240 670 200 30
NİTRİL KAUÇUK / BUNA N NBR MIS 100 240 680 200 35
MEKANİK KAPAMA
SERAMİK - GRAFİT - İNOX

MIS 40 DC 24 43 – 20 5 - 30 0.33 1½” 1½”
MIS 60 DC 24 55 – 50 5 - 20 0.8 1½” 1½”
MIS 80 DC 24 90 – 65 5 - 30 1.1 1½” 1½”
MIS 40 AC 1~230 - 3~230/400 40 – 20 5 - 30 0.55 1½” 1½”
MIS 60 AC 1~230 - 3~230/400 53 – 45 5 - 30 1.1 1½” 1½”
MIS 80 AC 1~230 - 3~230/400 95 – 70 5 - 30 1.5 1½” 1½”
MIS 100 AC 1~230 - 3~230/400 125 – 95 5 - 20 1.5 1½” 1½”
Voltage V Delivery l/min Head m Power kW IN - OUT
MBS

KENDİNDEN EMİŞLİ MACERATÖR POMPA / Self-Priming Macerator El/Pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
MBS 40 DC 175 430 145 17
BRONZE
MBS 40 AC 210 450 155 16
VİDA / SCREW
PASLANMAZ ÇELİK / STAINLESS STEEL
STATOR
NİTRİL KAUÇUK / BUNA N NBR
MEKANİK KAPAMA
SERAMİK - GRAFİT - NBR

MBS 40 DC 12 - 24 45 – 25 5 – 30 0.33 1” 1”
MBS 40 AC 1~230 - 3~230/400 45 – 25 5 - 35 0.55 1” 1”
Voltage V Delivery l/min Head m Power kW IN - OUT
TM

DİYAFRAMLI MANUEL POMPA / Multi Services Diaphgram El/Pumps

TM 15 DC 12 - 24 18 10 0.06 15 15
TM 38 DC 12 - 24 37 8 0.08 20 20
TM 50 DC 12 - 24 30 6 0.12 30 30
TM 70 DC 12 - 24 70 5 0.37 32 32
TM 120 DC 12 - 24 60 15 0.75 1½” 1½”
TM 70 AC 1~230 - 3~230/400 70 5 0.37 32 32
TM 120 AC 1~230 - 3~230/400 60 15 0.75 1½” 1½”
Voltage V Max Delivery l/min Max Head m Power kW IN - OUT
ÖLÇÜLER H mm D mm W mm Kg
TM 15 DC 180 250 90 3
TM 38 DC 190 310 130 4
TM 50 DC 270 320 290 7
TM 70 DC 380 500 350 22
TM 70 AC 380 500 350 20
TM 120 DC 320 600 300 40
TM 120 AC 320 600 300 38

78 TF MARINE / Kirli Atık Su Pompaları
