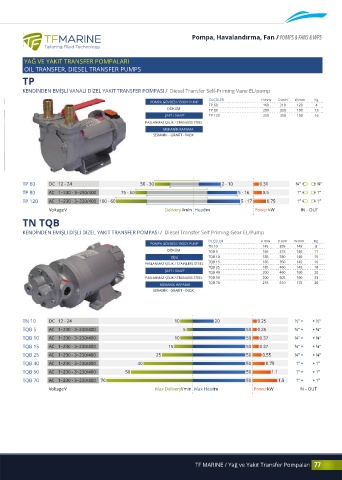

Page 75 - deniz-marin2

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

YAĞ VE YAKIT TRANSFER POMPALARI
OIL TRANSFER, DIESEL TRANSFER PUMPS

TP

KENDİNDEN EMİŞLİ VANALI DİZEL YAKIT TRANSFER POMPASI / Diesel Transfer Self-Priming Vane EL/pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
TP 60 160 210 120 4
DÖKÜM TP 80 200 330 190 13
ŞAFT / SHAFT TP 120 250 350 190 16
PASLANMAZ ÇELİK / STAINLESS STEEL
MEKANİK KAPAMA
SERAMİK - GRAFİT - İNOX

TP 60 DC 12 - 24 50 - 30 2 - 10 0.31 ¾” ¾”
TP 80 AC 1~230 - 3~230/400 75 - 60 5 - 16 0.5 1” 1”
TP 120 AC 1~230 - 3~230/400 100 - 60 5 - 17 0.75 1” 1”
Voltage V Delivery l/min Head m Power kW IN - OUT
TN TQB

KENDİNDEN EMİŞLİ DİŞLİ DİZEL YAKIT TRANSFER POMPASI / Diesel Transfer Self Priming Gear EL/Pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
TN 10 145 295 145 8
DÖKÜM TQB 5 155 315 140 11
DİŞLİ TQB 10 185 330 140 15
PASLANMAZ ÇELİK / STAINLESS STEEL TQB 15 185 350 145 16
TQB 25 185 460 145 18
ŞAFT / SHAFT TQB 40 200 460 160 20
PASLANMAZ ÇELİK / STAINLESS STEEL TQB 50 200 505 160 23
MEKANİK KAPAMA TQB 70 215 510 175 26
SERAMİK - GRAFİT - İNOX

TN 10 DC 12 - 24 10 20 0.25 ½” ½”
TQB 5 AC 1~230 - 3~230/400 5 50 0.25 ¾” ¾”
TQB 10 AC 1~230 - 3~230/400 10 50 0.37 ¾” ¾”
TQB 15 AC 1~230 - 3~230/400 15 50 0.37 ¾” ¾”
TQB 25 AC 1~230 - 3~230/400 25 50 0.55 ¾” ¾”
TQB 40 AC 1~230 - 3~230/400 40 50 0.75 1” 1”
TQB 50 AC 1~230 - 3~230/400 50 50 1.1 1” 1”
TQB 70 AC 1~230 - 3~230/400 70 50 1.5 1” 1”
Voltage V Max Delivery l/min Max Head m Power kW IN - OUT

TF MARINE / Yağ ve Yakıt Transfer Pompaları 77
