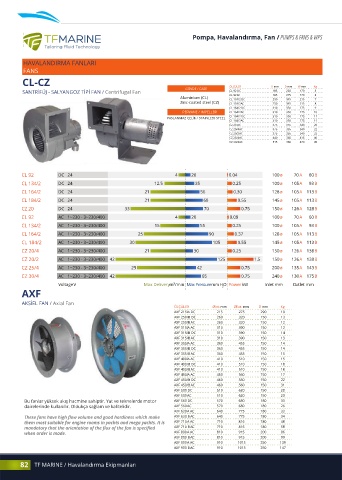

Page 80 - deniz-marin2

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

HAVALANDIRMA FANLARI
FANS

CL-CZ ÖLÇÜLER H mm D mm W mm Kg
SANTRİFÜJ - SALYANGOZ TİPİ FAN / Centrifugal Fan GÖVDE / CASE CL 92 DC 185 220 170 3
Aluminium (CL) CL 92 AC 185 275 170 3 7
CL 134/2 DC
230
345
215
Zinc-coated steel (CZ) CL 134/2 AC 230 345 215 8
CL 164/2 DC 310 350 275 9
PERVANE / IMPELLER CL 164/2 AC 310 350 275 10
PASLANMAZ ÇELİK / STAINLESS STEEL CL 184/2 DC 310 350 275 11
CL 184/2 AC 310 350 275 11
CZ 20 DC 375 355 340 20
CZ 20/4 AC 375 335 340 22
CZ 20/2 AC 375 355 340 32
CZ 25/4 AC 440 365 415 40
CZ 30/4 AC 515 360 470 45

CL 92 DC 24 4 20 0.04 100 ø 70 A 60 B
CL 134/2 DC 24 12.5 35 0.25 100 ø 105 A 93 B
CL 164/2 DC 24 21 56 0.30 128 ø 105 A 113 B
CL 184/2 DC 24 21 68 0.55 145 ø 105 A 113 B
CZ 20 DC 24 33 70 0.75 150 ø 126 A 128 B
CL 92 AC 1~230 - 3~230/400 4 20 0.09 100 ø 70 A 60 B
CL 134/2 AC 1~230 - 3~230/400 15 55 0.25 100 ø 105 A 93 B
CL 164/2 AC 1~230 - 3~230/400 25 90 0.37 128 ø 105 A 113 B
CL 184/2 AC 1~230 - 3~230/400 30 105 0.55 145 ø 105 A 113 B
CZ 20/4 AC 1~230 - 3~230/400 21 30 0.25 150 ø 126 A 138 B
CZ 20/2 AC 1~230 - 3~230/400 42 125 1.5 150 ø 126 A 138 B
CZ 25/4 AC 1~230 - 3~230/400 29 42 0.75 200 ø 135 A 143 B
CZ 30/4 AC 1~230 - 3~230/400 42 65 0.75 240 ø 130 A 175 B
Voltage V Max Delivery m³/min Max Pressure mm HO Power kW Inlet mm Outlet mm
2
AXF
AKSİEL FAN / Axial Fan
ÖLÇÜLER ØInt. mm ØExt. mm D mm Kg
AXF 215/A DC 215 275 290 10
AXF 250/B DC 260 320 150 13
AXF 250/B AC 260 320 150 12
AXF 315/A AC 310 390 150 12
AXF 315/B DC 310 390 150 14
AXF 315/B AC 310 390 150 13
AXF 355/A AC 360 455 150 14
AXF 355/B DC 360 455 150 14
AXF 355/B AC 360 455 150 15
AXF 400/A AC 410 510 150 15
AXF 400/B DC 410 510 150 18
AXF 400/B AC 410 510 150 18
AXF 450/A AC 460 560 150 17
AXF 450/B DC 460 560 150 22
AXF 450/B AC 460 560 150 31
AXF 500 DC 510 620 150 28
AXF 500 AC 510 620 150 23
Bu fanlar yüksek akış hacmine sahiptir. Yat ve teknelerde motor AXF 560 DC 570 680 180 33
dairelerinde kullanılır. Oldukça sağlam ve kalitelidir. AXF 560 AC 570 680 180 26
AXF 630 A AC 640 775 180 33
These fans have high flow volume and good hardiness which make AXF 630 B AC 640 775 180 34
them most suitable for engine rooms in yachts and mega yachts. It is AXF 710 A AC 710 816 180 48
mandatory that the orientation of the flux of the fan is specified AXF 710 B AC 710 816 180 58
when order is made. AXF 800 A AC 810 915 200 86
AXF 800 B AC 810 915 200 99
AXF 900 A AC 910 1015 250 139
AXF 900 B AC 910 1015 250 147

82 TF MARINE / Havalandırma Ekipmanları
