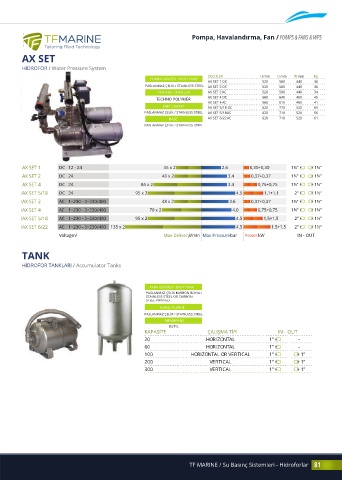

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

AX SET
HİDROFOR / Water Pressure System
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
AX SET 1 DC 520 580 440 36
PASLANMAZ ÇELİK / STAINLESS STEEL AX SET 2 DC 520 580 440 36
PERVANE / IMPELLER AX SET 2 AC 520 580 440 34
TECHNO POLYMER AX SET 4 DC 560 640 460 45
AX SET 4 AC 560 610 460 41
ŞAFT / SHAFT AX SET 5/18 DC 620 770 520 69
PASLANMAZ ÇELİK / STAINLESS STEEL AX SET 5/18 AC 620 710 520 56
BASE AX SET 6/22 AC 620 710 520 61
PASLANMAZ ÇELİK / STAINLESS STEEL

AX SET 1 DC 12 - 24 45 x 2 2.6 0,30+0,30 1¼” 1¼”
AX SET 2 DC 24 48 x 2 3.4 0,37+0,37 1¼” 1¼”
AX SET 4 DC 24 85 x 2 3.4 0,75+0,75 1¼” 1¼”
AX SET 5/18 DC 24 95 x 2 4.5 1,1+1,1 2” 1½”
AX SET 2 AC 1~230 - 3~230/400 48 x 2 3.6 0,37+0,37 1¼” 1¼”
AX SET 4 AC 1~230 - 3~230/400 70 x 2 4.0 0,75+0,75 1¼” 1¼”
AX SET 5/18 AC 1~230 - 3~230/400 95 x 2 4.5 1,5+1,5 2” 1½”
AX SET 6/22 AC 1~230 - 3~230/400 135 x 2 4.5 1,5+1,5 2” 1½”
Voltage V Max Delivery l/min Max Pressure bar Power kW IN - OUT

TANK

HİDROFOR TANKLARI / Accumulator Tanks

TANK GÖVDESİ / BODY TANK
PASLANMAZ ÇELİK KARBON BOYALI
STAINLESS STEEL OR CARBON
STEEL PAINTED
FLANŞ / FLANGE
PASLANMAZ ÇELİK / STAINLESS STEEL
MEMBRANE
BUTYL
KAPASİTE ÇALIŞMA TİPİ IN - OUT
20 HORIZONTAL 1” -
60 HORIZONTAL 1” -
100 HORIZONTAL OR VERTICAL 1” 1”
200 VERTICAL 1” 1”
300 VERTICAL 1” 1”
