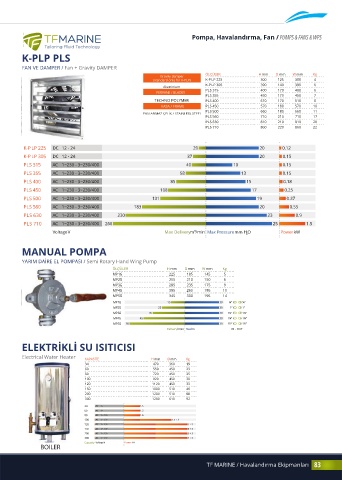

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

K-PLP PLS
FAN VE DAMPER / Fan + Gravity DAMPER
Gravity damper ÖLÇÜLER H mm D mm W mm Kg
(standard only for K-PLP) K-P LP 225 300 125 300 4
K-P LP 305 390 140 390 6
Aluminium
PERVANE / BLADES PLS 315 400 170 400 6
PLS 355 450 170 450 7
TECHNO POLYMER PLS 400 510 170 510 8
KASA / FRAME PLS 450 570 180 570 10
PLS 500 660 180 660 11
PASLANMAZ ÇELİK / STAINLESS STEEL
PLS 560 710 210 710 17
PLS 630 810 210 810 20
PLS 710 860 220 860 22

K-PLP 225 DC 12 - 24 20 20 0.12
K-PLP 305 DC 12 - 24 37 20 0.15
PLS 315 AC 1~230 - 3~230/400 40 10 0.15
PLS 355 AC 1~230 - 3~230/400 58 13 0.15
PLS 400 AC 1~230 - 3~230/400 85 15 0.18
PLS 450 AC 1~230 - 3~230/400 108 17 0.25
PLS 500 AC 1~230 - 3~230/400 131 19 0.37
PLS 560 AC 1~230 - 3~230/400 183 20 0.55
PLS 630 AC 1~230 - 3~230/400 230 23 0.9
PLS 710 AC 1~230 - 3~230/400 266 25 1.5
Voltage V Max Delivery m³/min Max Pressure mm HO Power kW
2

MANUAL POMPA

YARIM DAİRE EL POMPASI / Semi Rotary Hand Wing Pump
ÖLÇÜLER H mm D mm W mm Kg
MP1G 225 185 145 5
MP2G 255 210 150 6
MP3G 285 235 175 9
MP4G 305 260 195 11
MP5G 345 300 195 14
MP1G 15 30 ¾” ¾”
MP2G 25 30 1” 1”
MP3G 35 30 1¼” 1¼”
MP4G 45 30 1¼” 1¼”
MP5G 60 30 1½” 1½”
Delivery l/min Head m IN - OUT

ELEKTRİKLİ SU ISITICISI

Electrical Water Heater KAPASİTE H mm Ø mm Kg
34 470 360 19
60 550 450 23
80 720 450 25
100 920 450 30
120 1120 450 33
150 1000 510 46
200 1200 510 68
300 1200 610 92
34 AC 1~ 1.5
60 AC 1~ 1.5
80 AC 1~ / 3~ 1.5
100 AC 1~ / 3~ 1.5 + 3
120 AC 1~ / 3~ 3 + 3
150 AC 1~ / 3~ 3 + 3
200 AC 1~ / 3~ 3 + 3
300 AC 1~ / 3~ 3 + 3
Capacity Voltage V Power kW
BOILER
