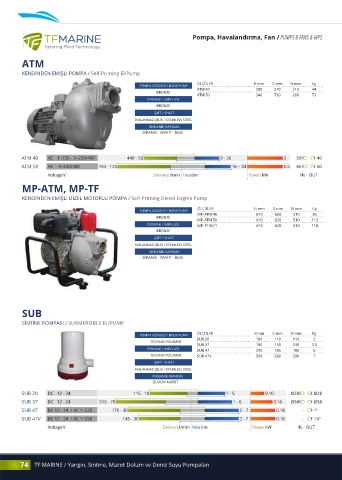

Page 72 - deniz-marin2

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

ATM

KENDİNDEN EMİŞLİ POMPA / Self-Priming El/Pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
ATM 40 280 570 210 44
BRONZE
ATM 50 340 730 280 73
PERVANE / IMPELLER
BRONZE
ŞAFT / SHAFT
PASLANMAZ ÇELİK / STAINLESS STEEL
MEKANİK KAPAMA
SERAMİK - GRAFİT - İNOX

ATM 40 AC 1~230 - 3~230/400 440 - 50 9 - 26 3 50 40
ATM 50 AC 3~230/400 740 - 125 16 – 34 5.5 65 50
Voltage V Delivery l/min Head m Power kW IN - OUT

MP-ATM, MP-TF

KENDİNDEN EMİŞLİ DİZEL MOTORLU POMPA / Self-Priming Diesel Engine Pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
MP-ATM 40 610 620 510 82
BRONZE
MP-ATM 50 610 620 510 113
PERVANE / IMPELLER MP-TF 50/1 610 620 510 118
BRONZE
ŞAFT / SHAFT
PASLANMAZ ÇELİK / STAINLESS STEEL
MEKANİK KAPAMA
SERAMİK - GRAFİT - İNOX

SUB

SİNTİNE POMPASI / SUBMERSIBLE EL/PUMP
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
SUB 20 160 110 110 2
TECHNO POLYMER
SUB 37 190 130 130 2.5
PERVANE / IMPELLER SUB 47 290 180 180 6
TECHNO POLYMER SUB 47V 350 230 230 7
ŞAFT / SHAFT
PASLANMAZ ÇELİK / STAINLESS STEEL
MEKANİK KAPAMA
SİLİKON KARBİT
SUB 20 DC 12 - 24 115 - 10 1 - 5 0.10 Ø28 Ø28
SUB 37 DC 12 - 24 210 - 70 1 - 6 0.16 Ø38 Ø38
SUB 47 DC 12 - 24 / AC 1~230 175 - 30 2 - 7 0.18 - 1”
SUB 47V DC 12 - 24 / AC 1~230 145 - 30 2 - 7 0.18 - 1¼”
Voltage V Delivery l/min Head m Power kW IN - OUT

74 TF MARINE / Yangın, Sintine, Mazot Dolum ve Deniz Suyu Pompaları
