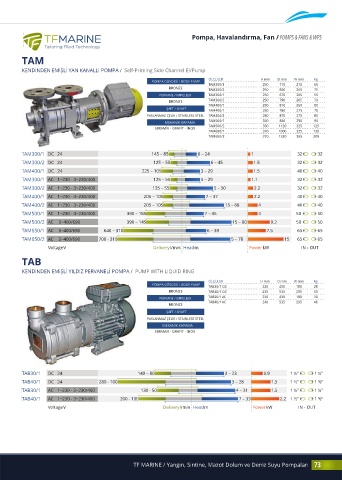

Pompa, Havalandırma, Fan / PUMPS & FANS & WPS

TAM

KENDİNDEN EMİŞLİ YAN KANALLI POMPA / Self-Priming Side Channel El/Pump
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
TAM300/1 250 710 210 65
BRONZE TAM300/2 250 800 265 75
PERVANE / IMPELLER TAM300/1 250 670 265 55
BRONZE TAM300/2 250 790 265 70
TAM400/1 280 810 260 80
ŞAFT / SHAFT
TAM400/1 280 780 275 70
PASLANMAZ ÇELİK / STAINLESS STEEL TAM400/2 280 870 275 85
MEKANİK KAPAMA TAM500/1 330 830 290 90
SERAMİK - GRAFİT - İNOX TAM500/2 330 1120 325 125
TAM650/1 370 1000 325 130
TAM650/2 370 1320 365 200

TAM300/1 DC 24 145 – 85 6 – 24 1 32 32
TAM300/2 DC 24 125 – 55 6 – 45 1.5 32 32
TAM400/1 DC 24 225 – 105 3 – 29 1.5 40 40
TAM300/1 AC 1~230 - 3~230/400 125 – 55 5 – 29 1.1 32 32
TAM300/2 AC 1~230 - 3~230/400 135 – 55 5 – 50 2.2 32 32
TAM400/1 AC 1~230 - 3~230/400 205 – 105 7 – 37 2.2 40 40
TAM400/2 AC 1~230 - 3~230/400 205 – 105 15 – 68 4 40 40
TAM500/1 AC 1~230 - 3~230/400 390 – 185 7 – 35 4 50 50
TAM500/2 AC 3~400/690 390 – 145 15 – 80 9.2 50 50
TAM650/1 AC 3~400/690 640 – 310 6 – 39 7.5 65 65
TAM650/2 AC 3~400/690 700 - 310 5 – 78 15 65 65
Voltage V Delivery l/min Head m Power kW IN - OUT
TAB

KENDİNDEN EMİŞLİ YILDIZ PERVANELİ POMPA / PUMP WITH LIQUID RING
ÖLÇÜLER H mm D mm W mm Kg
POMPA GÖVDESİ / BODY PUMP
TAB30/1 DC 220 450 180 28
BRONZE TAB40/1 DC 235 535 205 50
PERVANE / IMPELLER TAB30/1 AC 230 430 180 30
BRONZE TAB40/1 AC 240 535 205 46
ŞAFT / SHAFT
PASLANMAZ ÇELİK / STAINLESS STEEL
MEKANİK KAPAMA
SERAMİK - GRAFİT - İNOX

TAB30/1 DC 24 140 – 80 3 – 23 0.9 1 ¼” 1 ¼”
TAB40/1 DC 24 280 - 100 3 – 28 1.5 1 ½” 1 ½”
TAB30/1 AC 1~230 - 3~230/400 130 - 50 4 – 31 1.5 1 ¼” 1 ¼”
TAB40/1 AC 1~230 - 3~230/400 200 - 100 7 – 33 2.2 1 ½” 1 ½”
Voltage V Delivery l/min Head m Power kW IN - OUT

TF MARINE / Yangın, Sintine, Mazot Dolum ve Deniz Suyu Pompaları 73
