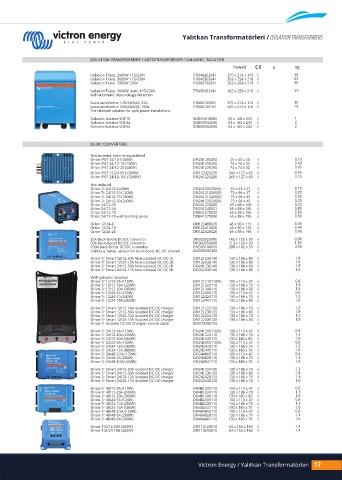

Yalıtkan Transformatörleri / ISOLATION TRANSFORMERS

ISOLATION TRANSFORMERS / AUTOTRANSFORMER / GALVANIC ISOLATOR
hxwxd e kg
Isolation Trans. 2000W 115/230V ITR040202041 375 x 214 x 110 √ 10
Isolation Trans. 3600W 115/230V ITR040362041 362 x 258 x 218 √ 23
Isolation Trans. 7000W 230V ITR000702001 362 x 258 x 218 √ 30
Isolation Trans. 3600W Auto 115/230V ITR050362041 362 x 258 x 218 √ 23
with automatic inputvoltage detection
Autotransformer 120/240VAC-32A ITR000100001 375 x 214 x 110 √ 10
Autotransformer 120/240VAC-100A ITR000100101 425 x 214 x 110 √ 14
The ultimate solution for split phase installations
Galvanic Isolator VDI-16 GDI000016000 60 x 120 x 200 √ 1
Galvanic Isolator VDI-32 GDI000032000 63 x 164 x 235 √ 2
Galvanic Isolator VDI-64 GDI000064000 64 x 164 x 224 √ 2

DC-DC CONVERTERS
Not isolated, resin encapsulated
Orion IP67 24/12-5 (60W) ORI241205260 25 x 43 x 20 √ 0,10
Orion IP67 24/12-10 (120W) ORI241210260 74 x 74 x 32 √ 0,40
Orion IP67 24/12-20 (240W) ORI241220260 74 x 74 x 32 √ 0,45
Orion IP67 12/24-50 (1200W) ORI122421226 340 x 127 x 63 √ 3,05
Orion IP67 24/12-100 (1200W) ORI241221226 265 x 127 x 63 √ 2,15
Not isolated
Orion-Tr 24/12-5 (60W) ORI241205200(R) 53 x 51 x 27 √ 0,10
Orion-Tr 24/12-10 (120W) ORI241210200(R) 73 x 94 x 37 √ 0,20
Orion-Tr 24/12-15 (180W) ORI241215200(R) 73 x 94 x 45 √ 0,30
Orion-Tr 24/12-20 (240W) ORI241220200(R) 73 x 94 x 45 √ 0,30
Orion 24/12-25 ORI241225020 65 x 88 x 160 √ 0,70
Orion 24/12-40 ORI241240021 65 x 88 x 185 √ 0,85
Orion 24/12-70 ORI241270020 65 x 88 x 195 √ 0,90
Orion 24/12-70 with binding posts ORI241270030 65 x 88 x 195 √ 0,90
Orion 12/24-8 ORI122408020 45 x 90 x 115 √ 0,30
Orion 12/24-10 ORI122410020 45 x 90 x 125 √ 0,40
Orion 12/24-20 ORI122420020 65 x 88 x 195 √ 0,90
25A Buck-Boost DC/DC converter ORI303025000 165 x 120 x 30 √ 0,90
50A Buck-Boost DC/DC converter ORI303050000 213 x 120 x 30 √ 1,10
100A buck-Boost DC/DC converter ORI303100000 288 x 162 x 50 √ 4,00
CAN-bus Temp. sensor for buck-boost DC-DC convert ASS000200100 √
Orion-Tr Smart 12/12-30A Non-isolated DC-DC ch. ORI121236140 130 x 186 x 80 √ 1,8
Orion-Tr Smart 12/24-15A Non-isolated DC-DC ch. ORI122436140 130 x 186 x 80 √ 1,8
Orion-Tr Smart 24/12-30A Non-isolated DC-DC ch. ORI241236140 130 x 186 x 80 √ 1,8
Orion-Tr Smart 24/24-17A Non-isolated DC-DC ch. ORI242440140 130 x 186 x 80 √ 1,6
With galvanic isolation
Orion-Tr 12/12-9A (110W) ORI121210110(R) 100 x 113 x 47 √ 0,6
Orion-Tr 12/12-18A (220W) ORI121222110 130 x 186 x 70 √ 1,3
Orion-Tr 12/12-30A (360W) ORI121240110 130 x 186 x 80 √ 1,8
Orion-Tr 12/24-5A (120W) ORI122410110 100 x 113 x 47 √ 0,6
Orion-Tr 12/24-10 (240W) ORI122424110 130 x 186 x 70 √ 1,3
Orion-Tr 12/24-15A (360W) ORI122441110 130 x 186 x 80 √ 1,8
Orion-Tr Smart 12/12-18A Isolated DC-DC charger ORI121222120 130 x 186 x 70 √ 1,3
Orion-Tr Smart 12/12-30A Isolated DC-DC charger ORI121236120 130 x 186 x 80 √ 1,8
Orion-Tr Smart 12/24-10A Isolated DC-DC charger ORI122424120 130 x 186 x 70 √ 1,3
Orion-Tr Smart 12/24-15A Isolated DC-DC charger ORI122436120 130 x 186 x 80 √ 1,8
Orion-Tr Isolated DC-DC Charger remote cable ASS070300100 √
Orion-Tr 24/12-9A (110W) ORI241210110(R) 100 x 113 x 47 √ 0,6
Orion-Tr 24/12-20A (240W) ORI241224110 130 x 186 x 70 √ 1,3
Orion-Tr 24/12-30A (360W) ORI241240110 130 x 186 x 80 √ 1,8
Orion-Tr 24/24-5A (120W) ORI242410110(R) 100 x 113 x 47 √ 0,6
Orion-Tr 24/24-12A (280W) ORI242428110 130 x 186 x 70 √ 1,3
Orion-Tr 24/24-17A (400W) ORI242441110 130 x 186 x 70 √ 1,6
Orion-Tr 24/48-2,5A (120W) ORI244810110 100 x 113 x 47 √ 0,6
Orion-Tr 24/48-6A (280W) ORI244828110 130 x 186 x 70 √ 1,3
Orion-Tr 24/48-8,5A (400W) ORI244841110 130 x 186 x 70 √ 1,6
Orion-Tr Smart 24/12-20A Isolated DC-DC charger ORI241224120 130 x 186 x 70 √ 1,3
Orion-Tr Smart 24/12-30A Isolated DC-DC charger ORI241236120 130 x 186 x 80 √ 1,8
Orion-Tr Smart 24/24-12A Isolated DC-DC charger ORI242428120 130 x 186 x 70 √ 1,3
Orion-Tr Smart 24/24-17A Isolated DC-DC charger ORI242440120 130 x 186 x 70 √ 1,6
Orion-Tr 48/12-9A (110W) ORI481210110 100 x 113 x 47 √ 0,6
Orion-Tr 48/12-20A (240W) ORI481224110 130 x 186 x 70 √ 1,3
Orion-Tr 48/12-30A (360W) ORI481240110 130 x 186 x 80 √ 1,8
Orion-Tr 48/24-5A (120W) ORI482410110 100 x 113 x 47 √ 0,6
Orion-Tr 48/24-12A (280W) ORI482428110 130 x 186 x 70 √ 1,3
Orion-Tr 48/24-16A (380W) ORI482441110 130 x 186 x 70 √ 1,6
Orion-Tr 48/48-2,5A (120W) ORI484810110 100 x 113 x 47 √ 0,6
Orion-Tr 48/48-6A (280W) ORI484828110 130 x 186 x 70 √ 1,3
Orion-Tr 48/48-8A (380W) ORI484841110 130 x 186 x 70 √ 1,6
Orion 110/12-30A (360W) ORI110123610 64 x 163 x 160 √ 1,4
Orion 110/24-15A (360W) ORI110243610 64 x 163 x 160 √ 1,4

Victron Energy / Yalıtkan Transformatörleri 17
