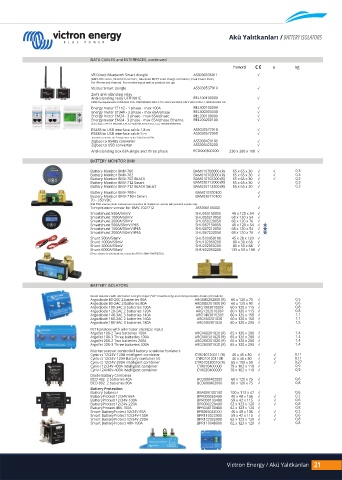

Page 19 - deniz-marin2

Akü Yalıtkanları / BATTERY ISOLATORS

DATA CABLES and INTERFACES, continued
hxwxd e kg
VE.Direct Bluetooth Smart dongle ASS030536011 √
(BMV-70X series, VE.Direct inverters, BlueSolar MPPT solar charge controllers, Peak Power Pack)
For iPhone and Android. For monitoring as well as product set-up)
VE.Bus Smart dongle ASS030537010 √
Ziehl anti-islanding relay
Anti-islanding relay UFR1001E REL100100000 √
Fulfills the requirements of VDE-AR-N 4105, ÖVE/ÖNORM E 8001-4-712, G59/3 and G83/2, DIN V VDE V 0126-1-1, ERDF-NOI-RES_13E
Energy meter ET112 - 1 phase - max 100A REL300100000 √
Energy meter ET340 - 3 phase - max 65A/phase REL300300000 √
Energy meter EM24 - 3 phase - max 65A/phase REL200100000 √
Energy meter EM24 - 3 phase - max 65A/phase Etherne REL200200100 √
(Carlo Gavazzi ET112-DIN.AV01.X.S1.X, ET340-DIN.AV23.X.S1.X, resp. EM24DINAV93XISX)
RS485 to USB interface cable 1,8 m ASS030572018 √
RS485 to USB interface cable 5 m ASS030572050 √
(needed to connect the Energy meter to the ColorControl GX)
Zigbee to RS485 converter ASS300420100 √
Zigbee to USB converter ASS300420200 √
Anti-islanding box 63A single and three phase RCD000300200 230 x 380 x 100 √
BATTERY MONITOR BMV

Battery Monitor BMV-700 BAM010700000 (R) 65 x 65 x 30 √ √ 0,3
Battery Monitor BMV-702 BAM010702000 (R) 65 x 65 x 30 √ √ 0,3
Battery Monitor BMV-702 BLACK BAM010702200 (R) 65 x 65 x 30 √ √ 0,3
Battery Monitor BMV-712 Smart BAM030712000 (R) 65 x 65 x 30 √ 0,3
Battery Monitor BMV-712 BLACK Smart BAM030712200 (R) 65 x 65 x 30 √ 0,3
Battery Monitor BMV-700H BAM010700100 √
Battery Monitor BMV-710H Smart BAM030710100 √
70 - 350 VDC
With 500A shunt in plastic enclosureand connection kit. Suitable for systems with grounded negative only.
Temperature sensor for BMV-702/712 ASS000100000 √
Smartshunt 500A/50mV SHU050150050 46 x 120 x 54 √
Smartshunt 1000A/50mV SHU050210050 68 x 120 x 54 √
Smartshunt 2000A/50mV SHU050220050 68 x 120 x 76 √
Smartshunt 500A/50mV IP65 SHU067150050 46 x 120 x 54 √
Smartshunt 1000A/50mV IP65 SHU067210050 68 x 120 x 54 √
Smartshunt 2000A/50mV IP65 SHU067220050 68 x 120 x 76 √
Shunt 500A/50mV SHU500050100 45 x 28 x 120 √

Shunt 1000A/50mV SHU102050200 80 x 30 x 68 √
Shunt 2000A/50mV SHU202050200 80 x 50 x 68 √

Shunt 6000A/50mV SHU602050200 135 x 60 x 168 √
(These shunts do not include the connection PCB to BMV-700/702/712)

BATTERY ISOLATORS

Diode Isolators with alternator energize input ("AC" models only) and compensation diode (all models)
Argodiode 80-2SC 2 batteries 80A ARG080202000 (R) 60 x 120 x 75 √ 0,5
Argodiode 80-2AC 2 batteries 80A ARG080201000 (R) 60 x 120 x 90 √ 0,6
Argodiode 100-3AC 3 batteries 100A ARG100301000R 60 x 120 x 115 √ 0,8
Argodiode 120-2AC 2 batteries 120A ARG120201020R 60 x 120 x 115 √ 0,8
Argodiode 140-3AC 3 batteries 140A ARG140301020R 60 x 120 x 150 √ 1,1
Argodiode 160-2AC 2 batteries 160A ARG160201020 60 x 120 x 150 √ 1,1
Argodiode 180-3AC 3 batteries 180A ARG180301020 60 x 120 x 200 √ 1,5
FET Isolators with alternator energize input
Argofet 100-2 Two batteries 100A ARG100201020 (R) 65 x 120 x 200 √ 1,4
Argofet 100-3 Three batteries 100A ARG100301020 (R) 65 x 120 x 200 √ 1,4
Argofet 200-2 Two batteries 200A ARG200201020 (R) 65 x 120 x 200 √ 1,4
Argofet 200-3 Three batteries 200A ARG200301020 (R) 65 x 120 x 200 √ 1,4
Microprocessor controlled battery combiner/isolators
Cyrix-ct 12/24V-120A intelligent combiner CYR010120011 (R) 46 x 46 x 80 √ √ 0,11
Cyrix-ct 12/24V-120A Battery combiner kit CYR010120110R 46 x 46 x 80 √ √ 0,11
Cyrix-ct 12/24V-230A intelligent combiner CYR010230010 (R) 65 x 100 x 50 √ √ 0,27
Cyrix-i 12/24V-400A intelligent combiner CYR010400000 78 x 102 x 110 √ 0,9
Cyrix-i 24/48V-400A intelligent combiner CYR020400000 78 x 102 x 110 √ 0,9
Diode Battery Combiner
BCD 402 2 batteries 40A BCD000402000 60 x 120 x 75 √ 0,6
BCD 802 2 batteries 80A BCD000802000 60 x 120 x 75 √ 0,8
Battery Protection
Battery balancer BBA000100100 100 x 113 x 47 √ 0,6
BatteryProtect 12/24V 65A BPR000065400 40 x 48 x 106 √ √ 0,2
BatteryProtect 12/24V-100A BPR000100400 59 x 42 x 115 √ √ 0,6
BatteryProtect 12/24V-220A BPR000220400 62 x 123 x 120 √ √ 0,8
BatteryProtect 48V-100A BPR048100400 62 x 123 x 120 √ 0,8
Smart BatteryProtect 12/24V 65A BPR065022000 40 x 48 x 106 √ √ 0,2
Smart BatteryProtect 12/24V-100A BPR110022000 59 x 42 x 115 √ √ 0,6
Smart BatteryProtect 12/24V-220A BPR122022000 62 x 123 x 120 √ √ 0,8
Smart BatteryProtect 48V-100A BPR110048000 62 x 123 x 120 √ 0,8

Victron Energy / Akü Yalıtkanları 21
