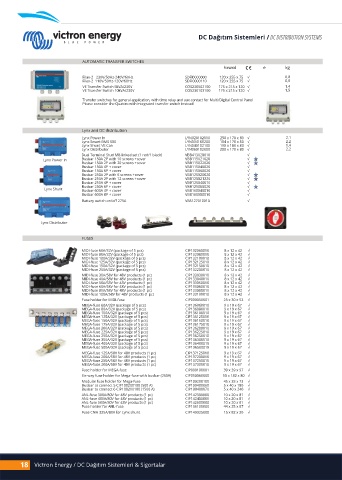

DC Dağıtım Sistemleri / DC DISTRIBUTION SYSTEMS

AUTOMATIC TRANSFER SWITCHES
hxwxd e kg

Filax-2 230V/50Hz-240V/60Hz SDFI0000000 120 x 255 x 75 √ 0,8
Filax-2 110V/50Hz-120V/60Hz SDFI0000110 120 x 255 x 75 √ 0,8
VE Transfer Switch 5kVA/230V COS230502100 175 x 215 x 120 √ 1,4
VE Transfer Switch 10kVA/230V COS230103100 175 x 215 x 120 √ 1,5
Transfer switches for general application, with time relay and aux contact for Multi/Digital Control Panel
Please consider the Quattro with integrated transfer switch instead!

Lynx and DC distribution
Lynx Power In LYN020102000 290 x 170 x 80 √ 2,1
Lynx Smart BMS 500 LYN034160200 184 x 170 x 80 √ 2,2
Lynx Shunt VE.Can LYN040102100 190 x 180 x 80 √ 1,4
Lynx Distributor LYN060102000 290 x 170 x 80 √ 2,2
Dual Terminal Stud M8-linked set (1 red/1 black) VBB413020010 √
Lynx Power In Busbar 150A 2P with 10 screws +cover VBB115021020 √
Busbar 150A 2P with 20 screws +cover VBB115022020 √
Busbar 150A 4P + cover VBB115040020 √
Busbar 150A 6P + cover VBB115060020 √
Busbar 250A 2P with 6 screws +cover VBB125020620 √
Busbar 250A 2P with 12 screws +cover VBB125021220 √
Busbar 250A 4P + cover VBB125040010 √
Busbar 250A 6P + cover VBB125060020 √
Lynx Shunt Busbar 600A 4P + cover VBB160040010 √
Busbar 600A 8P + cover VBB160080010 √
Battery switch on/off 275A VBS127010010 √

Lynx Distributor

FUSES

MIDI-fuse 60A/32V (package of 5 pcs) CIP132060010 8 x 12 x 42 √
MIDI-fuse 80A/32V (package of 5 pcs) CIP132080010 8 x 12 x 42 √
MIDI-fuse 100A/32V (package of 5 pcs) CIP132100010 8 x 12 x 42 √
MIDI-fuse 125A/32V (package of 5 pcs) CIP132125010 8 x 12 x 42 √
MIDI-fuse 150A/32V (package of 5 pcs) CIP132150010 8 x 12 x 42 √
MIDI-fuse 200A/32V (package of 5 pcs) CIP132200010 8 x 12 x 42 √
MIDI-fuse 30A/58V for 48V products (1 pc) CIP133030010 8 x 12 x 42 √
MIDI-fuse 40A/58V for 48V products (1 pc) CIP133040010 8 x 12 x 42 √
MIDI-fuse 50A/58V for 48V products (1 pc) CIP133050010 8 x 12 x 42 √
MIDI-fuse 60A/58V for 48V products (1 pc) CIP133060010 8 x 12 x 42 √
MIDI-fuse 80A/58V for 48V products (1 pc) CIP133080010 8 x 12 x 42 √
MIDI-fuse 100A/58V for 48V products (1 pc) CIP133100010 8 x 12 x 42 √
Fuse holder for MIDI-fuse CIP000050001 25 x 30 x 52 √
MEGA-fuse 60A/32V (package of 5 pcs) CIP136060010 9 x 19 x 67 √
MEGA-fuse 80A/32V (package of 5 pcs) CIP136080010 9 x 19 x 67 √
MEGA-fuse 100A/32V (package of 5 pcs) CIP136100010 9 x 19 x 67 √
MEGA-fuse 125A/32V (package of 5 pcs) CIP136125010 9 x 19 x 67 √
MEGA-fuse 150A/32V (package of 5 pcs) CIP136150010 9 x 19 x 67 √
MEGA-fuse 175A/32V (package of 5 pcs) CIP136175010 9 x 19 x 67 √
MEGA-fuse 200A/32V (package of 5 pcs) CIP136200010 9 x 19 x 67 √
MEGA-fuse 225A/32V (package of 5 pcs) CIP136225010 9 x 19 x 67 √
MEGA-fuse 250A/32V (package of 5 pcs) CIP136250010 9 x 19 x 67 √
MEGA-fuse 300A/32V (package of 5 pcs) CIP136300010 9 x 19 x 67 √
MEGA-fuse 400A/32V (package of 5 pcs) CIP136400010 9 x 19 x 67 √
MEGA-fuse 500A/32V (package of 5 pcs) CIP136500010 9 x 19 x 67 √
MEGA-fuse 125A/58V for 48V products (1 pc) CIP137125010 9 x 19 x 67 √
MEGA-fuse 200A/58V for 48V products (1 pc) CIP137200010 9 x 19 x 67 √
MEGA-fuse 250A/58V for 48V products (1 pc) CIP137250010 9 x 19 x 67 √
MEGA-fuse 300A/58V for 48V products (1 pc) CIP137300010 9 x 19 x 67 √
Fuse holder for MEGA-fuse CIP000100001 39 x 39 x 97 √
Six-way fuse holder for Mega-fuse with busbar (250A) CIP050060000 50 x 182 x 80 √
Modular fuse holder for Mega-fuse CIP100200100 45 x 33 x 73 √
Busbar to connect 5 CIP100200100 (500 A) CIP100400060 5 x 40 x 180 √
Busbar to connect 6 CIP100200100 (1500 A) CIP100400070 5 x 40 x 240 √
ANL-fuse 300A/80V for 48V products (1 pc) CIP142300000 10 x 20 x 81 √
ANL-fuse 400A/80V for 48V products (1 pc) CIP142400000 10 x 20 x 81 √
ANL-fuse 500A/80V for 48V products (1 pc) CIP142500000 10 x 20 x 81 √
Fuse holder for ANL-fuse CIP106100000 44 x 25 x 87 √
Fuse CNN 325A/80V for Lynx shunt CIP140325000 15 x 82 x 20 √
