BY CONDARIA PCWM VAR / PCWM VAR
GROUP

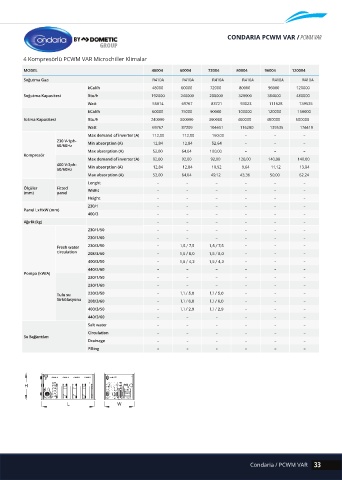

4 Kompresörlü PCWM VAR Microchiller Klimalar

MODEL 48004 60004 72004 80004 96004 120004
Soğutma Gazı R410A R410A R410A R410A R410A R410A
kCal/h 48000 60000 72000 80000 96000 120000
Soğutma Kapasitesi Btu/h 192000 240000 288000 320000 384000 480000
Watt 55814 69767 83721 93023 111628 139535
kCal/h 60000 75000 90000 100000 120000 150000
Isıtma Kapasitesi Btu/h 240000 300000 360000 400000 480000 600000
Watt 69767 87209 104651 116280 139535 174419
Max demand of inverter (A) 112,00 112,00 160,00 – – –
230 V-1ph- Min absorption (A) 12,84 12,84 52,64 – – –
50/60Hz
Max absorption (A) 52,00 64,04 100,00 – – –

Kompresör
Max demand of inverter (A) 92,00 92,00 92,00 120,00 140,00 140,00
400 V-3ph- Min absorption (A) 12,84 12,84 10,92 9,64 11,12 13,84
50/60Hz
Max absorption (A) 52,00 64,04 49,12 43,36 50,00 62,24
Lenght – – – – – –
Ölçüler Fitted Widht – – – – – –
(mm) panel
Height – – – – – –
230/1 – – – – – –
Panel LxHxW (mm)
400/3 – – – – – –
Ağırlık (kg) – – – – – –
230/1/50 – – – – – –
230/1/60 – – – – – –

Fresh water 230/3/50 – – – –
circulation 208/3/60 – – – –
400/3/50 – – – –
440/3/60 – – – – – –
Pompa (kW/A)
230/1/50 – – – – – –
230/1/60 – – – – – –
Tulu su 230/3/50 – – – –
Sirkülasyonu 208/3/60 – – – –
400/3/50 – – – –
440/3/60 – – – – – –
Salt water – – – – – –
Circulation – – – – – –
Su Bağlantıları
Drainage – – – – – –
Filling – – – – – –

Condaria / PCWM VAR 33
