BY CONDARIA PCWM VAR / PCWM VAR
GROUP

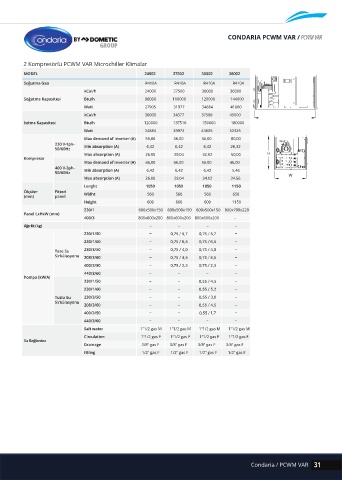

2 Kompresörlü PCWM VAR Microchiller Klimalar
MODEL 24002 27502 30002 36002
Soğutma Gazı R410A R410A R410A R410A
kCal/h 24000 27500 30000 36000
Soğutma Kapasitesi Btu/h 96000 110000 120000 144000
Watt 27905 31977 34884 41860
kCal/h 30000 34377 37500 45000
Isıtma Kapasitesi Btu/h 120000 137510 150000 180000
Watt 34884 39973 43605 52325
Max demand of inverter (A) 56,00 56,00 56,00 80,00
230 V-1ph- Min absorption (A) 6,42 6,42 6,42 26,32
50/60Hz
Max absorption (A) 26,00 29,04 32,02 50,00
Kompresör

Max demand of inverter (A) 46,00 46,00 56,00 46,00
400 V-3ph- Min absorption (A) 6,42 6,42 6,42 5,46
50/60Hz
Max absorption (A) 26,00 29,04 34,02 24,56
Lenght 1050 1050 1050 1150
Ölçüler Fitted Widht 560 560 560 650
(mm) panel
Height 600 600 600 1150
230/1 600x500x150 600x500x150 600x500x150 800x700x220
Panel LxHxW (mm)
400/3 800x600x200 800x600x200 800x600x200 –
Ağırlık (kg) – – – –
230/1/50
230/1/60

Taze Su 230/3/50
Sirkülasyonu 208/3/60
400/3/50
440/3/60 − − − −
Pompa (kW/A)
230/1/50 −
230/1/60 −
Tuzlu Su 230/3/50 −
Sirkülasyonu
208/3/60 −
400/3/50 −
440/3/60 − − − −
Salt water 1“1/2 gas M 1“1/2 gas M 1“1/2 gas M 1“1/2 gas M
Circulation 1“1/2 gas F 1“1/2 gas F 1“1/2 gas F 1“1/2 gas F
Su Bağlantısı
Drainage 3/8“ gas F 3/8“ gas F 3/8“ gas F 3/8“ gas F
Filling 1/2“ gas F 1/2“ gas F 1/2“ gas F 1/2“ gas F

Condaria / PCWM VAR 31
