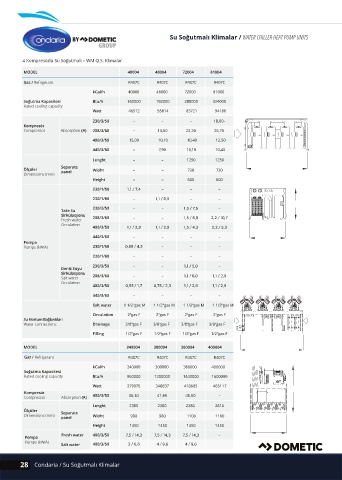

BY Su Soğutmalı Klimalar / WATER CHILLER HEAT PUMP UNITS
GROUP

4 Kompresörlü Su Soğutmalı – WM Q.S. Klimalar

MODEL 40004 48004 72004 81004
Gaz / Refrigerant R407C R407C R407C R407C
kCal/h 40000 48000 72000 81000
Soğutma Kapasitesi Btu/h 160000 192000 288000 324000
Rated cooling capacity
Watt 46512 55814 83721 94186
230/3/50 – – – 18,00–
Kompresör
Compressor Absorption (A) 208/3/60 – 13,60 23,20 25,70
400/3/50 15,00 10,10 10,40 12,50
440/3/60 – 7,90 10,10 10,40
Lenght – – 1250 1250
Separate
Ölçüler panel Widht – – 730 730
Dimensions (mm)
Height – – 600 600
230/1/50 – – –
230/1/60 – – –
230/3/50 – – –
Taze Su
Sirkülasyonu
Fresh water 208/3/60 – –
Circulation
400/3/50
440/3/60 – – – –
Pompa
Pumps (kW/A) 230/1/50 – –
230/1/60 – – – –
230/3/50 – – –
Deniz Suyu
Sirkülasyonu
Salt water 208/3/60 – –
Circulation
400/3/50
440/3/60 – – – –
Salt water 1 1/2"gas M 1 1/2"gas M 1 1/2“gas M 1 1/2“gas M
Circulation 2“gas F 2“gas F 2“gas F 2“gas F
Su Hortum Bağlantıları
Water connections Drainage 3/8“gas F 3/8“gas F 3/8“gas F 3/8“gas F
Filling 1/2“gas F 1/2“gas F 1/2“gas F 1/2“gas F

MODEL 240004 300004 360004 400004
Gaz / Refrigerant R407C R407C R407C R407C

kCal/h 240000 300000 360000 400000
Soğutma Kapasitesi
Rated cooling capacity Btu/h 960000 1200000 1440000 1600000
Watt 279070 348837 418605 465117
Kompresör
Compressor Absorption (A) 400/3/50 36,30 41,60 46,60 –
Lenght 2380 2380 2380 2610
Ölçüler Separate
Dimensions (mm) Widht 980 980 1100 1100
panel
Height 1450 1450 1450 1450

Fresh water 400/3/50
Pompa
Pumps (kW/A)
Salt water 400/3/50
